Galfan Iron Wire

FOB Price:US $500 - 1,000 / Ton
Min.Order Quantity:5 Ton/Tons
Supply Ability:100 Ton/Tons per Day
Port:Tianjin
Payment Terms:T/T,L/C

Categories:

Products


Galfan Wire is actually a special alloy galvanized wire also named as Zn-Al-Alloy Coating Iron Wire. Wire diameter ranges from 1.24mm-5.5mm.

We offer Galfan Wire (Al5%,Zinc 95%) or (Al10%,Zinc 90%) types.

Basic Technical Details:
1.Surface Coating: Galvanizing
2.Features: Galfan wire offers high tensile strength, small tolerance, Shiny surface, good corrosion prevention

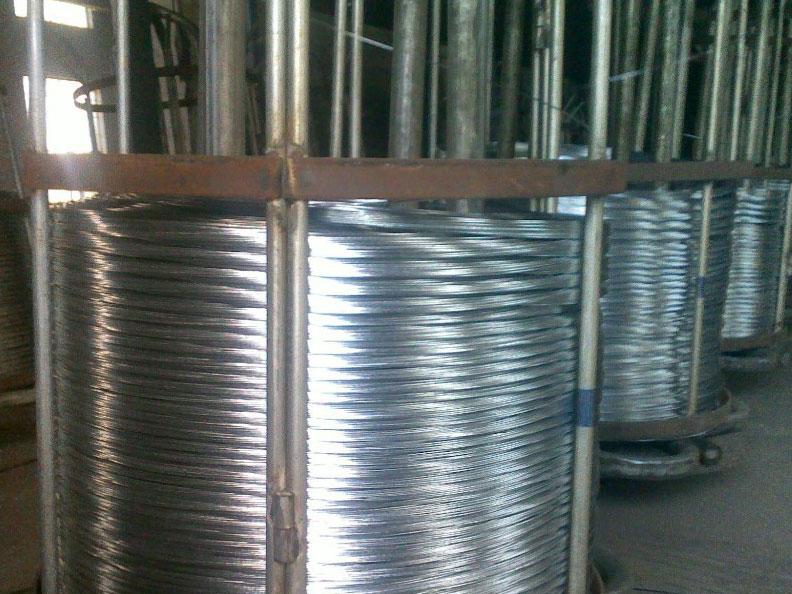

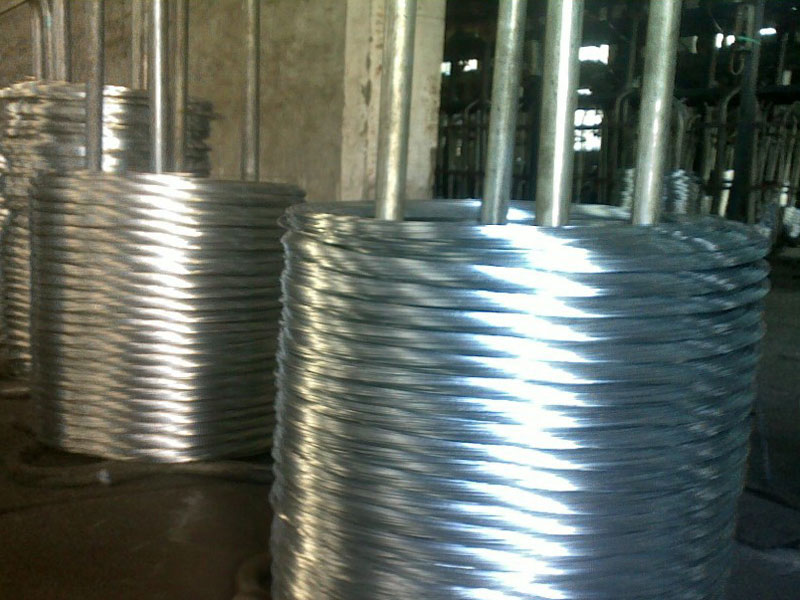

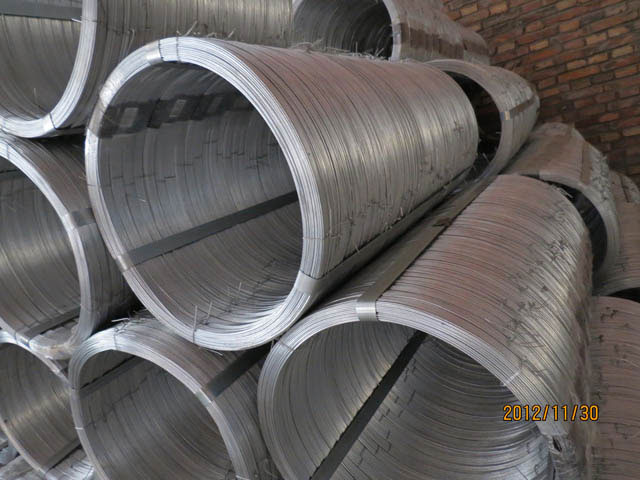

3.Packing type: Spool; Coil
4.Application: Galfan wire is used for stranded conductors in overhead power circuitry
5.Remarks during use and handling:
a. During transportation, handle softly and carefully, avoid bumping and damaging the steel wires. Moisture and rain prohibited. Steel wires must be stored in dry and well ventilated indoors
b. Pay attention to the direction of steel wires when paying-off. Be sure the spools or coilis rotationg freely as to achieve identical tension of all the steel wires
c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface to guarantee coating

Technical parameters
Wire dia: 1.24-5.5mm; Tensile Strength:1290~1340Mpa

Specification with Nominal Diameter, Elongation, Strength, Twist:

Nominal Diameter

Tensile Strength

Stress at 1% Elongation

Twist

Elongation

Standard

mm

Mpa

Mpa

Times/360°C

Lo=250mm

As per GB,EN,IEC,JIS,ASTM standard,as well as customer’s request

1.24-2.25

≥1340

≥1170

≥18

≥3%

2.25-2.75

≥1310

≥1140

≥16

≥3%

2.75-3.00

≥1310

≥1140

≥16

≥3.5%

3.00-3.50

≥1290

≥1100

≥14

≥3.5%

3.50-4.25

≥1290

≥1100

≥12

≥4%

4.25-4.75

≥1290

≥1100

≥12

≥4%

4.75-5.50

≥1290

≥1100

≥12

≥4%

Quality Standards of Galfan Wire:
(1) Quality : Meet GB/T 343 standard and other requirements of relevant standards .
(2) Zinc Coating: Meet GB/T 15393 standard and other requirements of relevant standards .
(3) Raw Material : Wire rod ——1006 , 1008 , 1018 , Q195 , etc, and zinc with 99.995% purity.
(4) Tensile Strength Range

Size (mm)

Tensile Strength (mpa)

0.15-1.60

290-550

0.65-1.60

400-550

1.61-6.00

400-1200

(5) Application : Used in wire mesh , artware , metal hose , binding for agriculture and construction , etc.
(6) Packing

Size (mm)

Coil Size

Spool Packing

Big Coil Packing

ID (mm)

OD (mm)

0.15-0.26

6 inch

1-14kg/spool

0.27-0.60

8 inch

1-100kg/spool

0.61-1.60

12/14/16 inch

1-100kg/spool

250-400

400-770

1.61-6.00

14-500kg/spool

450

800

508

840

(7) Zinc Coating
Meet GB/T 15393 standard.

Size (mm)

Weight of Zinc-Coating ( g/m2 )

A

AB

B

C

D

E

F

A1

B2

≤0.25

30

20

18

>0.25-0.40

30

25

20

>0.40-0.50

30

20

>0.50-0.60

35

20

>0.60-0.80

120

110

40

20

>0.80-1.00

150

130

45

25

>1.00-1.20

180

150

50

25

>1.20-1.40

200

160

50

25

>1.40-1.60

220

180

50

35

30

>1.60-1.80

220

180

70

40

30

>1.80-2.20

230

200

80

50

40

>2.20-2.50

240

210

80

55

40

>2.50-3.00

250

230

90

70

45

>3.00-4.00

270

250

100

85

60

30

>4.00-5.20

290

270

110

95

70

40

>5.20-6.00

290

270

245

110

100

80

50
