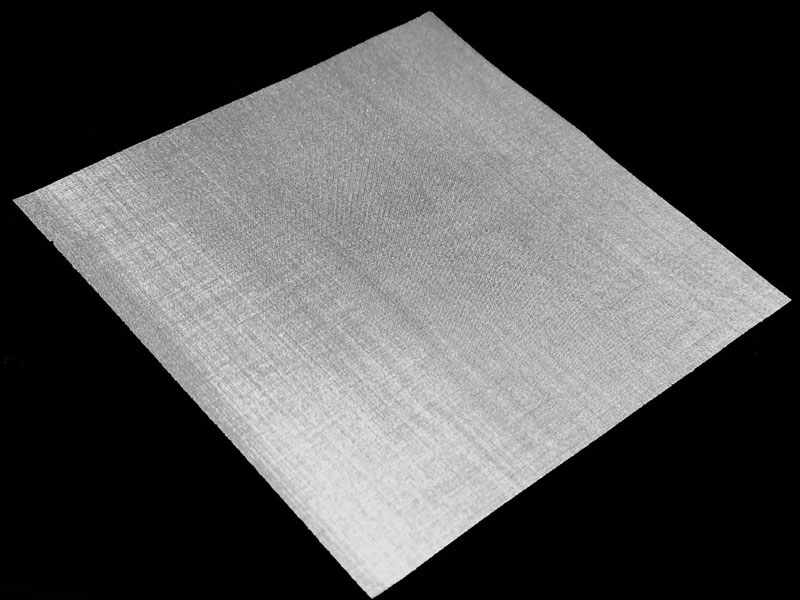

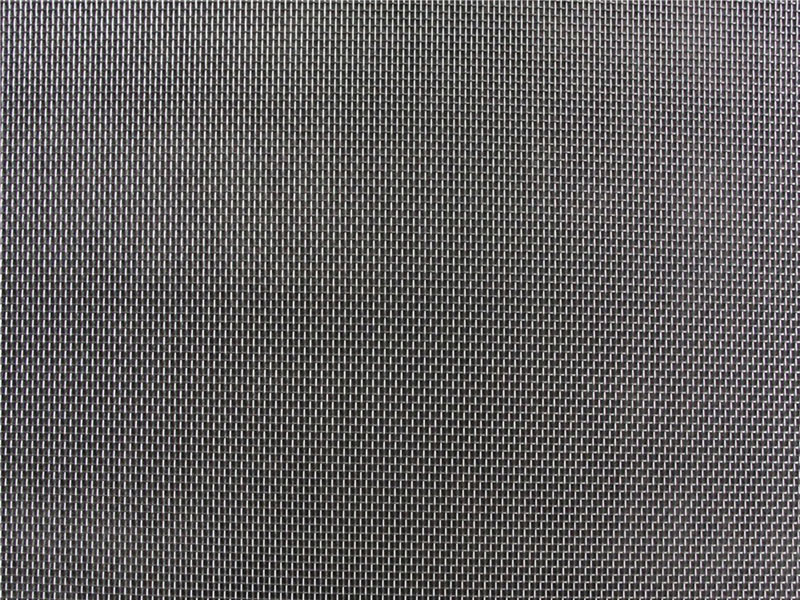

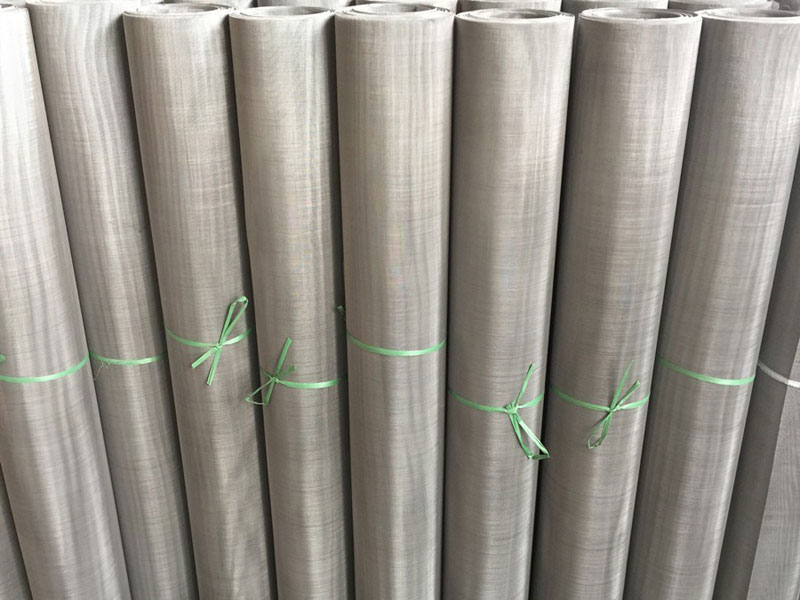

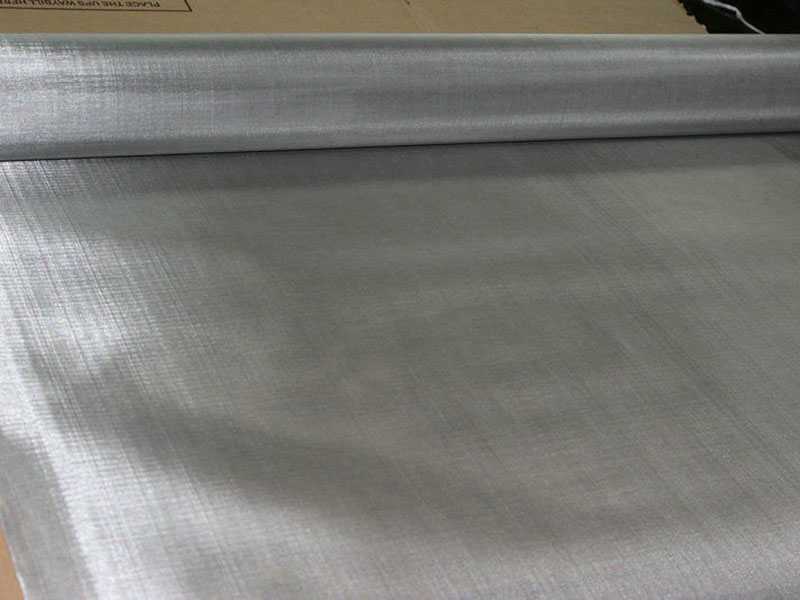

Stainless Steel Woven Mesh

FOB Price:US $30 - 100 / Roll
Min.Order Quantity:5 Roll/Rolls
Supply Ability:100 Roll/Rolls per Day
Port:Tianjin
Payment Terms:T/T,L/C

Products


Stainless steel wire is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

Wire Materials: SUS302, 304, 316, 304L, 316L.

Characteristics: Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .

Typical Weaving Patterns: Plain weave, twill weave, dutch weave.

Stainless Steel Woven Mesh

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Stainless Steel Wire Mesh and Wire Cloth, Plain Weave

Mesh

Wire Dia. (MM)

Opening (MM)

Material (AISI)

7meshx7mesh

1.00

2.63

304 or316

10meshx10mesh

0.60

1.94

304 or316

12meshx12mesh

0.50

1.62

304 or316

16meshx16mesh

0.40

1.19

304 or316

16meshx16mesh

0.35

1.24

304 or316

18meshx18mesh

0.35

1.06

304 or316

20meshx20mesh

0.40

0.87

304 or316

24meshx24mesh

0.26

0.80

304 or316

30meshx30mesh

0.30

0.55

304 or316

35meshx35mesh

0.17

0.56

304 or316

40meshx40mesh

0.23

0.40

304 or316

50meshx50mesh

0.20

0.31

304 or316

60meshx60mesh

0.15

0.27

304 or316

70meshx70mesh

0.12

0.24

304 or316

80meshx80mesh

0.13

0.19

304 or316

90meshx90mesh

0.12

0.16

304 or316

100meshx100mesh

0.10

0.15

304 or316

120meshx120mesh

0.09

0.12

304 or316

150meshx150mesh

0.063

0.11

304 or316

180meshx180mesh

0.053

0.09

304 or316

200meshx200mesh

0.053

0.07

304 or316

Stainless Steel Wire Mesh and Wire Cloth, Twill Weave

Mesh

Wire Dia. (MM)

Opening (MM)

Material (AISI)

250meshx250mesh

0.040

0.063

316

300meshx300mesh

0.040

0.044

316

325meshx325mesh

0.035

0.043

316L

350meshx350mesh

0.030

0.042

316L

400meshx400mesh

0.030

0.033

316L

450meshx450mesh

0.028

0.028

316L

500meshx500mesh

0.025

0.026

316L

Stainless Steel Wire Cloth, Dutch Weave

Mesh

Wire Dia. (MM)

Material (AISI)

12mesh x 64mesh

0.58 x 0.40

304 or 316

24mesh x 110mesh

0.36 x 0.25

304 or 316

14mesh x 88mesh

0.50 x 0.33

304 or 316

30mesh x 150mesh

0.23 x 0.18

304 or 316

40mesh x 200mesh

0.18 x 0.13

304 or 316

50mesh x 250mesh

0.14 x 0.11

304 or 316

80mesh x 700mesh

0.10 x 0.08

304 or 316

165mesh x 800mesh

0.071 x 0.040

304 or 316

165mesh x 1400mesh

0.06 x 0.04

304 or 316

200mesh x 1800mesh

0.05 x 0.032

304 or 316

825mesh x 2300mesh

0.035 x 0.025

316L

400mesh x 2800mesh

0.030 x 0.02

316L
